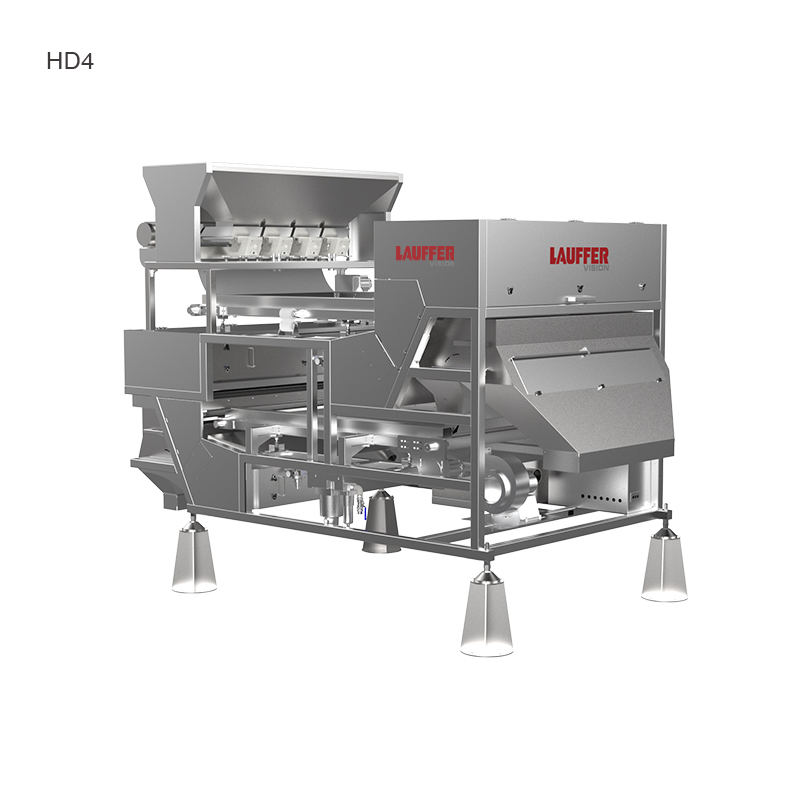

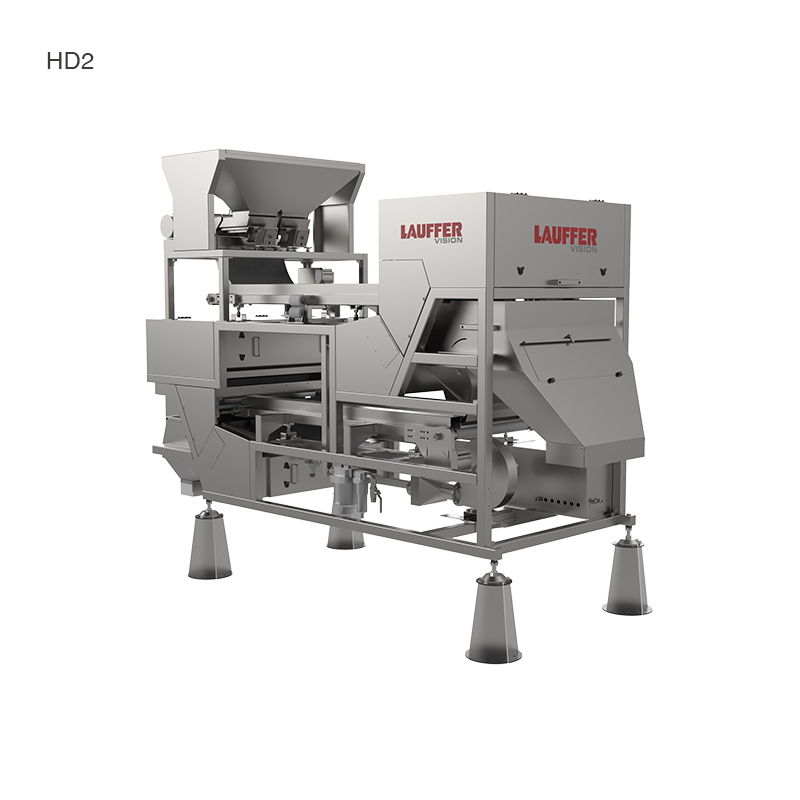

Legende HD AI-RGB Sorter

Legende HD AI-RGB sorter is a cost-effective solution by AI algorithms for low-cost pre-sorting of nuts and dried fruit mainly concerns visible defects

Technical Features

● Tailored Cost-effective Sorting Solution for Nuts and Dried Fruit

✦ Compact dual-belt sorting system with quick-install and simultaneous resorting design

✩ Primary sorting occurs on higher-level belt and aggressively removes all potential defects (may include false rejects)

✩ Secondary sorting on lower-level belt receives rejects from primary sorting for false-reject recovery

✦ High-capacity vibratory feeder evenly distributes nuts and dried fruit into a single layer to minimize overlapping

✦ Food-grade stainless steel structure complies with global food safety and hygiene standards

✦ Sealed scanning and control boxes provides machine with high-level dust protection

✦ Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime

✦ Quick belt change for convenient routine maintenance and cleaning, meeting higher food safety and hygiene standards

✦ Modular design of belt width from 600 to 1200mm (600/1200) provides processors more flexibility

● AI Powered 4-in-1 Inspection System

✦ Proprietary AI Deep Learning algorithms continuously improve defect recognition based on new samples

✦ High-resolution RGB Camera System

✦ High-intensity LED Illumination System

✦ Superb precision detection to various detects of nuts and dried fruit by color, size, shape and texture features for low-cost optical sorting solution

✩ Color Defects: Dark spots, oxidation, abnormal color

✩ Shape Defects: Broken, shriveled, misshapen, oversized, undersized

✩ Processing Defects: Shell fragments, pit residues, adhered skins

✩ Biological Contaminants: Insect damaged, visible mold, rotten

✩ Foreign Material Contamination: Insects, stems, leaves, stones, glass

● High-Performance Ejector System

✦ Engineered for enhanced durability, optimized speed and air consumption

✦ Accurate rejection and reliable performance at high-capacity sorting

✦ Significant reduction in false rejection rate and total cost of ownership

● 15-inch Industrial Touchscreen Control Panel

✦ Intuitive HMI with multilingual support

✦ Instant switching between product profiles

✦ Comprehensive remote support system

✩ Remote Access and Monitoring

✩ Real-time Performance Dashboard

✩ Live Expert Diagnosis

✩ Interactive Troubleshooting

Specifications
