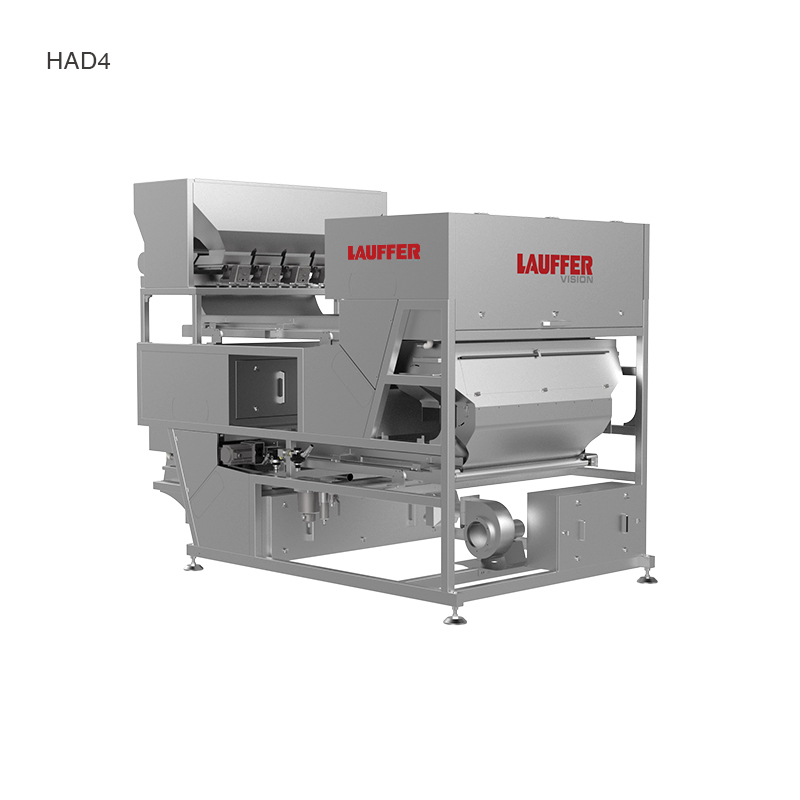

Legende HAD AI-RGB Sorter

It’s not just about removing bad cashews, it’s about optimally allocating every good kernel to its highest-value market!

Designed for kernel refinement of removal of surface defects and grading to export standards (W240/W320) by AI algorithms, and also elimination of burnt kernels and contaminants in post-roasting stage

Applications

Technical Features

● Tailored Sorting Solution for Cashew Nuts

✦ Compact dual-belt sorting system with designs for quick-install and simultaneous resorting of the accept from the primary sorting

✩ Primary sorting occurs on higher-level belt and rejects obvious bad kernels (rotten, shriveled, foreign material)

✩ Secondary sorting on lower-level belt receives accepts from primary sorting for sub-classification into multiple premium grades based on size, color and defect tolerance

✦ High-capacity vibratory feeder evenly distributes cashew nuts into a single layer to minimize overlapping

✦ Sealed scanning and control boxes provides machine with high-level dust protection

✦ Food-grade stainless steel structure and quick belt change ensures convenient routine maintenance and cleaning, meeting higher food safety and hygiene standards

✦ Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime

✦ Modular design of belt width from 600 to 1200mm (600/1200) provides processors more flexibility

● AI Powered 4-view and 4-in-1 Inspection System

✦ Proprietary AI Deep Learning algorithms continuously improves defect recognition based on new samples

✦ In-house 4-view Crossed High-Resolution RGB Camera System

✦ High-Intensity LED Illumination System

✦ Superior precision detection to various detects of cashew nuts by color, size, shape and texture features:

✩ Color Defects: Black spots, oxidation, yellowing

✩ Shape Defects: Broken, cracked, shriveled, deformed

✩ Processing Defects: Shell residues, adhered testa

✩ Biological Contaminants: Insect damage, mold, rotten

✩ Foreign Materials: Stems, leaves, stones, plastic, metal

✩ Size Grading: Whole (W), SW(Super Whole), S(Splits), B(Butts)

✦ Adjustable color, size, defect sensitivity tailored to client needs

✦ Adapts to global cashew types (Vietnam, India, Africa)

● High-Performance Ejector System

✦ Engineered for enhanced durability, optimized speed and air consumption

✦ Accurate rejection and reliable performance at high-capacity sorting

✦ Significant reduction in false rejection rate and total cost of ownership

● 15-inch Industrial Touchscreen Control Panel

✦ Intuitive HMI with multilingual support

✦ Instant switching between product profiles

✦ Comprehensive remote support system

✩ Remote Access and Monitoring

✩ Real-time Performance Dashboard

✩ Live Expert Diagnosis

✩ Interactive Troubleshooting

Specifications
