Donar DE-XRT Pro Sorter

Donar DE-XRT Pro Sorter leverages the exceptional combination of AI powered Dual-Energy X-ray Transmission Imaging and High-Resolution RGB Imaging. By measuring the differences in absorption and penetration of dual-energy X-rays by different materials, it achieves precise separation of aluminum and heavy metal impurities in non-ferrous metal scraps mix. Additionally, it efficiently distinguishes cast aluminum from wrought aluminum by detecting density and structure differences

Two X-ray energy levels:

Low-energy (20-50 keV)

High-energy (80-150 keV)

【Aluminum】

✦ Medium low-energy absorption (moderate transmission)

✦ Low high-energy absorption (high transmission)

✦ DER: 1.5-2.5

【Heavy metals (Cu, Zn, stainless steel, etc.)】

✦ Extremely high low-energy absorption (low transmission)

✦ Medium high-energy absorption (moderate transmission)

✦ DER>2.5

The Donar DE-XRT Pro sorter accurately distinguishes aluminum from heavy metal impurities in non-ferrous metal scraps mix by their DER differences

Technical Features

● Exceptional Combination of DE-XRT & High-Resolution RGB Imaging

✦ Accurate identification and separation of aluminum and heavy metal impurities by differences in X-ray absorption/penetration

✦ Accurate identification and separation of cast aluminum and wrought aluminum by differences in density and structure

● Proprietary AI Deep Learning Algorithms

Innovative simulation of manual picking operation by teaching and training the intelligent DE-XRT sorter all the standards and features of identification and sorting

● Reliable High-Performance Ejector System

High-speed and powerful air ejectors designed and produced in-house ensure accurate rejection and reliable performance at high-capacity sorting

● Flexible Modular Design

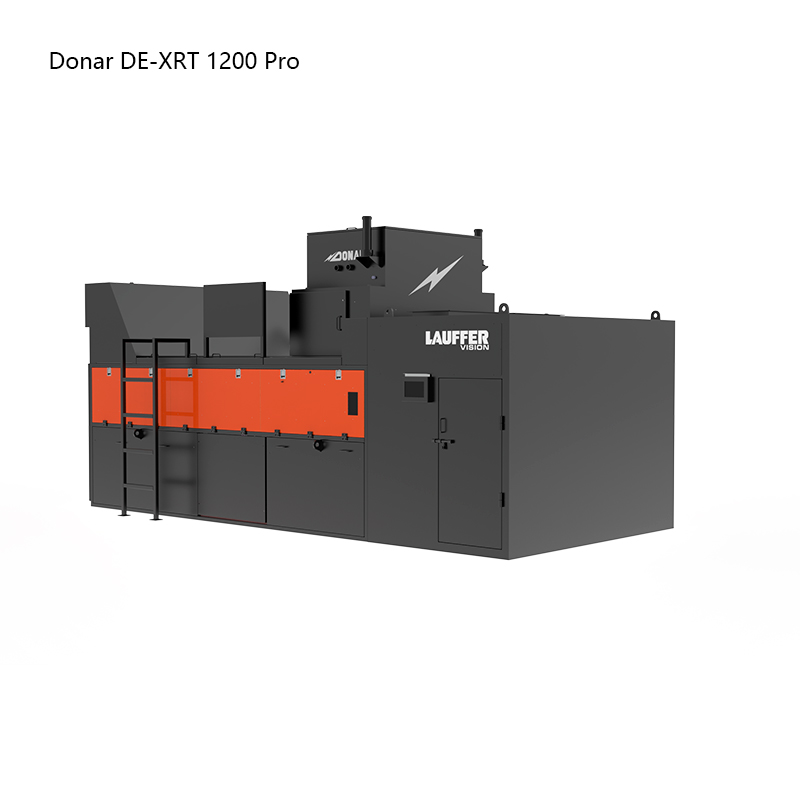

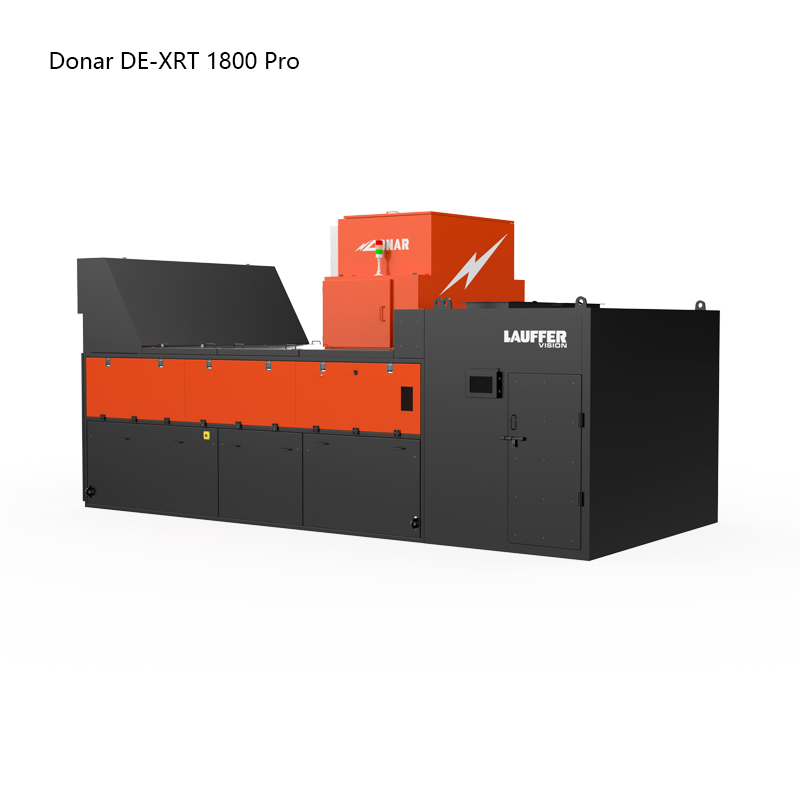

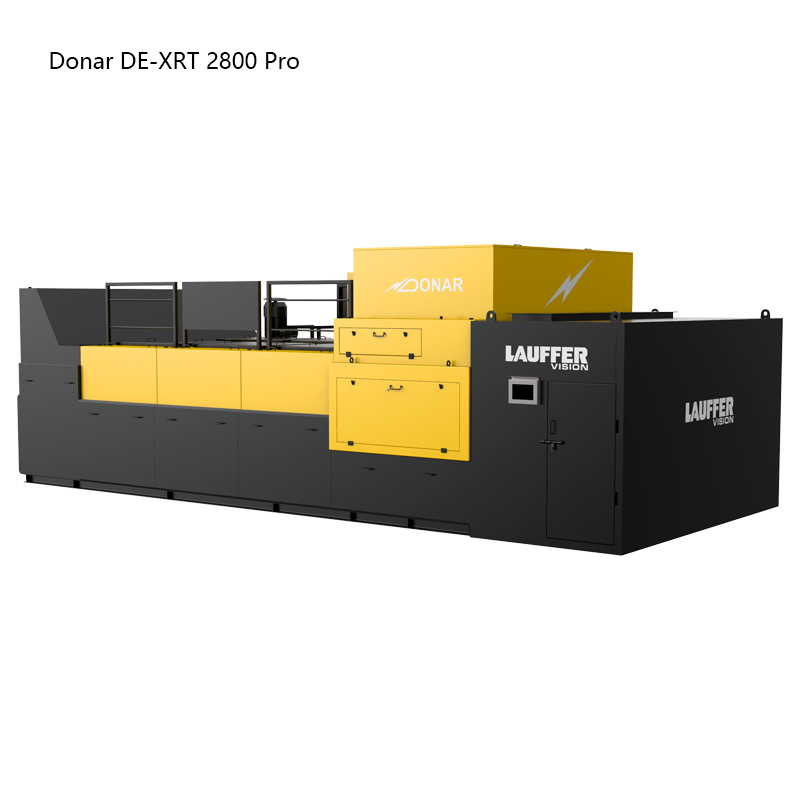

Modular design of belt width from 1200 to 2800mm (1200/1800/2800) provides processors more flexibility, ideal for auto dismantlers, aerospace aluminum recyclers and packaging material recyclers

Typical Applications

✦ Precise Impurity Detection in Aluminum

✩ Building Window/Door Recycling

✩ Beverage Can Recycling

✩ E-Waste Aluminum Recycling

✦ Cast/Wrought Aluminum Separation

✩ Auto Shredder Residue Sorting

✩ Industrial Machinery Scrap

✩ Aerospace Aluminum recycling

✩ Consumer Electronics Housing

Specifications
